项目简介

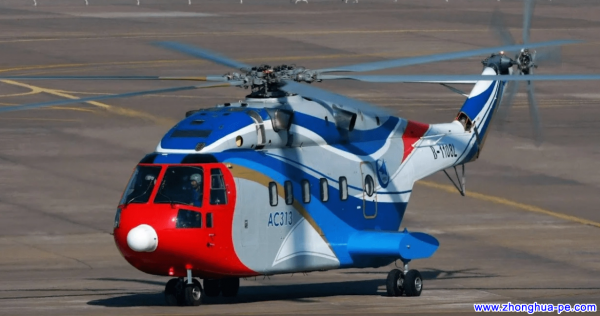

AC313是一款13吨级大型三发民用直升机。该机采用轮式起落架和双驾驶体制,装三台PT6B-67A发动机,配有高度集成的航电系统。依据CCAR-29R1规定中适用的适航要求,采用结构预留、空间预留设计准则,进行客货两用基本型研制,可按照昼夜目视飞行规则(VFR)和仪表飞行规则(IFR),在陆地和无结冰条件下进行目视和仪表飞行,可满足高温、高寒气候和高原等复杂地区对直升机的使用要求。
AC313 is a 13 ton large three engine civilian helicopter. The aircraft adopts a wheeled landing gear and dual driving system, equipped with three PT6B-67A engines and a highly integrated avionics system. According to the airworthiness requirements specified in CCAR-29R1, the basic type for both passenger and cargo use is developed using structural and space reservation design criteria. It can perform visual and instrument flights on land and without icing conditions in accordance with the Day Night Visual Flight Rules (VFR) and Instrument Flight Rules (IFR), and can meet the requirements for helicopter use in complex areas such as high temperatures, cold climates, and plateaus.

主要特点:
安全性高:装有三台发动机,在一台发动机失效的情况下可以继续飞行,在两台发动机失效的情况下可以就近着陆,大大提高了机上人员的生存概率。
三防性能佳:严格按照防盐雾、防湿热、防霉菌标准设计,适合在海洋气候条件和其他恶劣环境下使用。
空间大:客舱内有效容积23.5立方米,高1.83米,普通的中国人能在其中直立行走。装配了舒适的航空座椅和内饰,根据需要可改装成VIP公务机。
运载能力强:用于货物运输时,舱内最多可载货4吨,或外部吊运5吨。用于人员运输时,最多可载乘员27名,或运送15副担架和一名医务人员座椅及工作台。舱内可选装手动或电动绞车,地板上留有系留装置,可方便装卸和固定货物。
航程长:机内油箱满油最大航程900公里,携带三个转场油箱时,转场航程可增加到1400公里以上。
操纵性能优:操纵系统设计巧妙,总距及纵横向操纵联动,辅以四轴自动驾驶仪,操作负荷小,飞行品质佳。
适用范围广:可在-40℃~+50℃温度范围内正常使用,最大飞行高度可达6000米,能在海拔4500米的机场起降
Key Features:High safety: Equipped with three engines, it can continue to fly in the event of one engine failure, and land nearby in the event of two engine failures, greatly improving the survival probability of personnel on board.Excellent three proof performance: strictly designed according to the standards of salt spray, moisture and heat resistance, and mold resistance, suitable for use in marine climate conditions and other harsh environments.Large space: The cabin has an effective volume of 23.5 cubic meters and a height of 1.83 meters, allowing ordinary Chinese people to walk upright in it. Equipped with comfortable aviation seats and interior, it can be converted into a VIP business jet as needed.Strong carrying capacity: When used for cargo transportation, the maximum cargo capacity in the cabin is 4 tons, or 5 tons can be lifted externally. When used for personnel transportation, it can carry up to 27 passengers, or transport 15 stretchers and one medical staff seat and workbench. Manual or electric winches can be optionally installed in the cabin, and there are mooring devices on the floor for easy loading, unloading, and securing of goods.Long range: The maximum range when the onboard fuel tank is full is 900 kilometers. With three transfer fuel tanks, the transfer range can be increased to over 1400 kilometers.Excellent handling performance: The control system is ingeniously designed, with total distance and longitudinal and transverse control linkage, supplemented by a four axis autopilot, resulting in low operating load and excellent flight quality.Wide applicability: It can be used normally within the temperature range of -40 ℃ to+50 ℃, with a maximum flight altitude of 6000 meters, and can take off and land at airports with an altitude of 4500 meters
【价格:8000万至1.2亿】
[Price: 80 million to 120 million]
